Abyzz Apex Controller Interface Module - Abyzz

4 items left

Connect your Abyzz pump through the 0-10VDC variable speed ports with a HYDROS WaveEngine or Apex Controller and use Fusion to do all your programming for 24-hour cycles, enable feed modes, and apply warnings and alarms. Coupling the Abyzz pump with an Apex Controller you can use Apex Fusion to do all your programming for 24-hour cycles, enable feed modes, and apply warnings and alarms.

  • Serial to 3.5mm Female
  • 0% - 100% speed control
  • Simple secure connections

Connecting the Abyzz to Apex Interface cable is very simple. All that is required is an open variable speed port on an Apex System or expansion module. The 3.5mm female jack allows you to connect a 3.5mm to RJ45 cable (included) directly into your Apex Controller.

NOTE: Depending on your model of pump, a driver software update may be required.

Rated Input -1w max

Operating Voltage - 5VDC

Serial to Serial Extension Cable Length - 72 inches

RJ45 to 3.5mm Cable Length - 6FT



What's in the box?

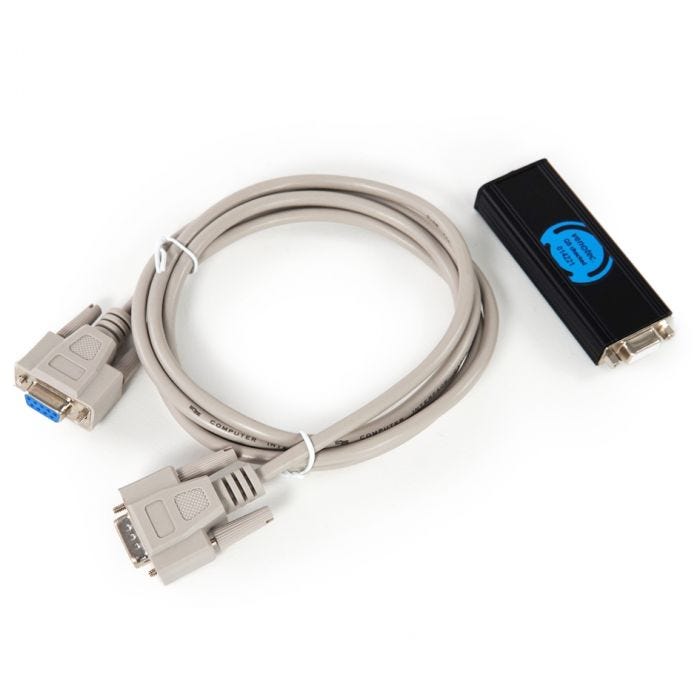

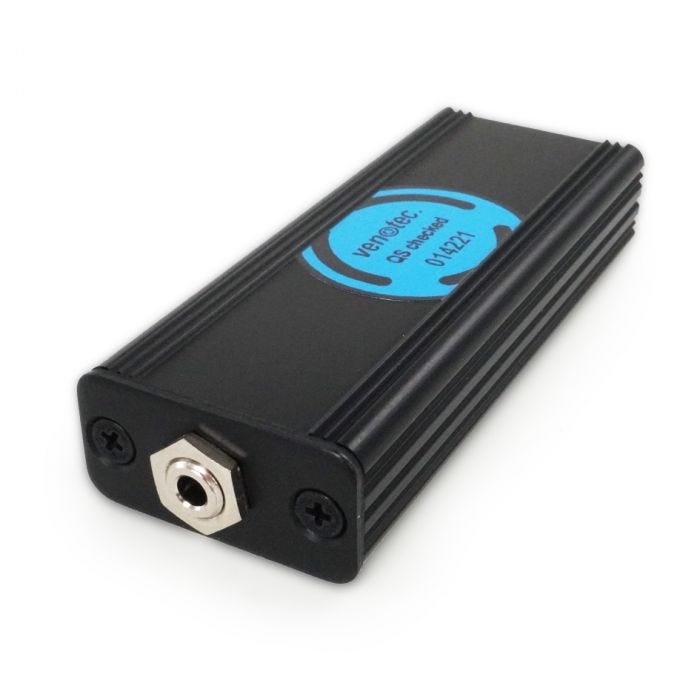

1x Serial to 3.5mm Converter Box

1x Serial to Serial Extension Cable

1x RJ45 to 3.5mm Link Cable

×
