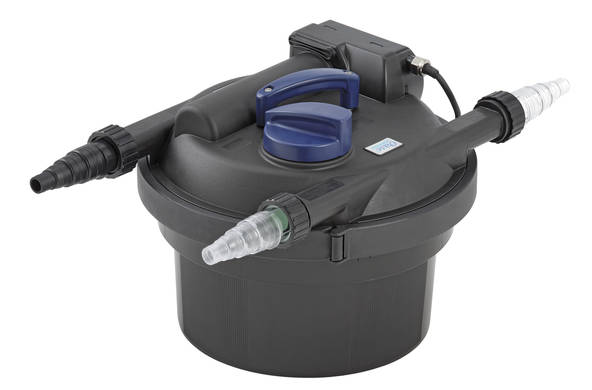

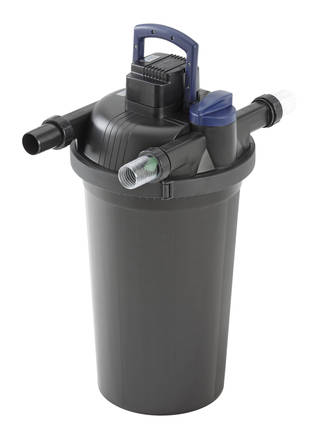

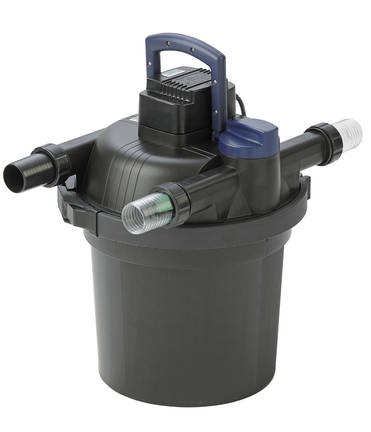

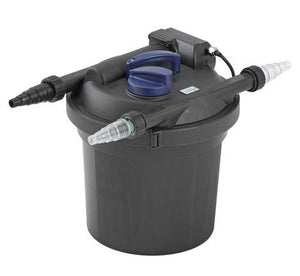

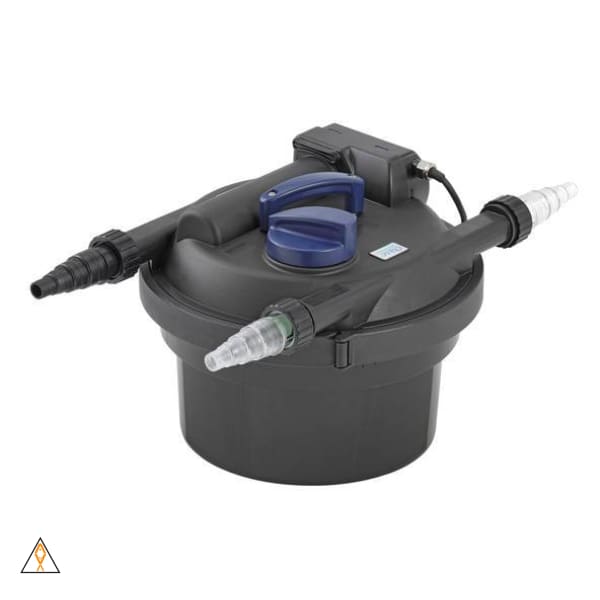

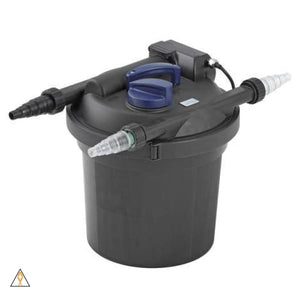

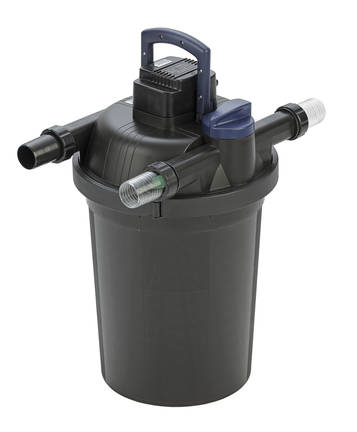

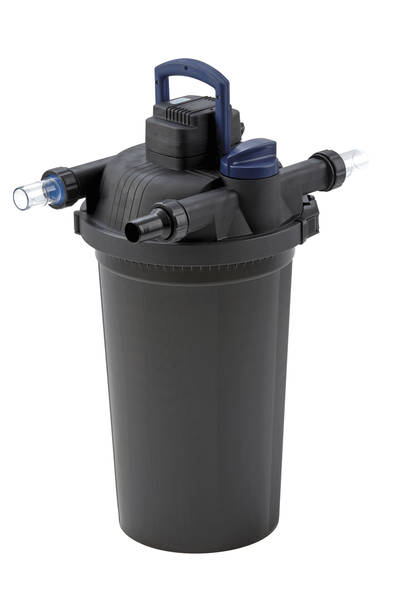

OASE FiltoClear Pressure Filter Series – Advanced Filtration with UV Clarification

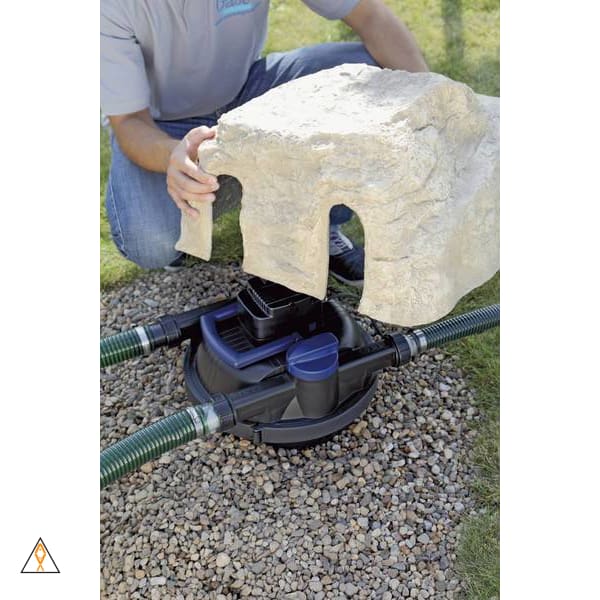

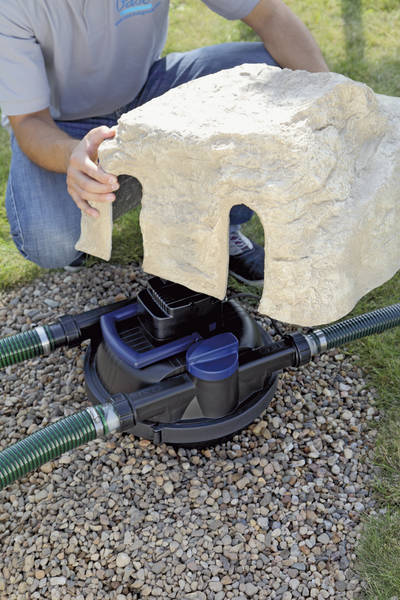

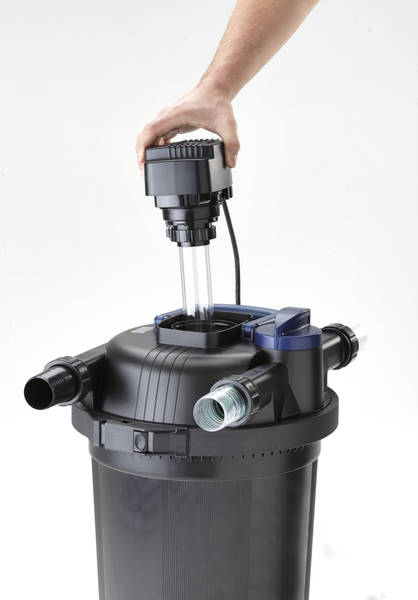

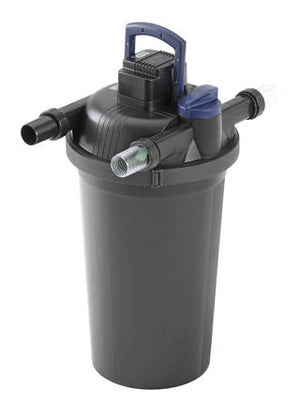

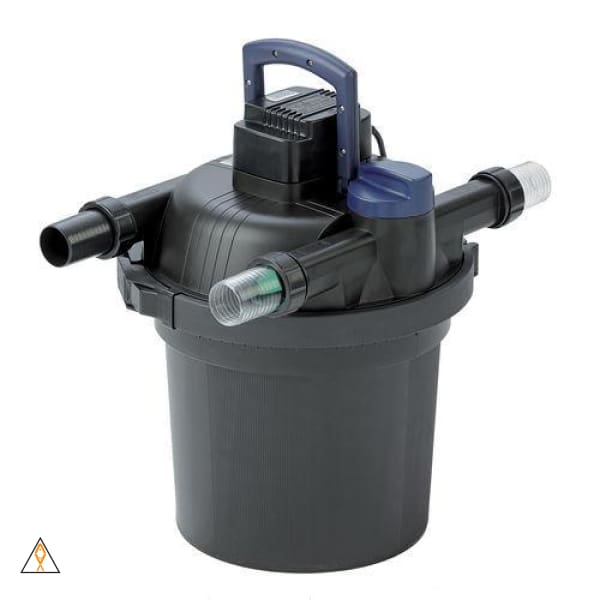

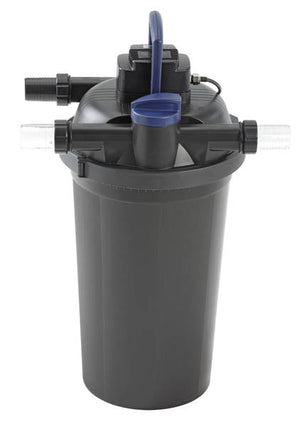

The OASE FiltoClear Series offers industry-leading, all-in-one pressurized pond filtration ideal for medium to large water features, including fountains, pond-free waterfalls, formal spillways, and traditional water gardens. Each unit in this family delivers mechanical and biological filtration alongside a powerful ultraviolet clarifier (UVC) — all in a compact, impact-resistant body that can be discreetly buried and camouflaged with the optional FiltoCap rock cover.

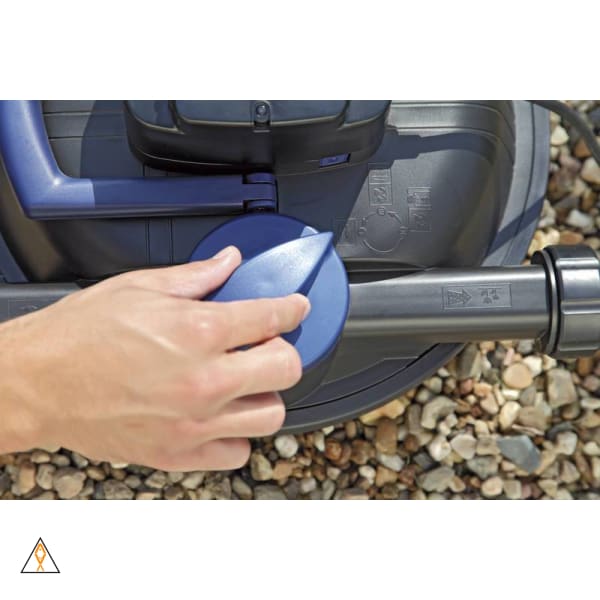

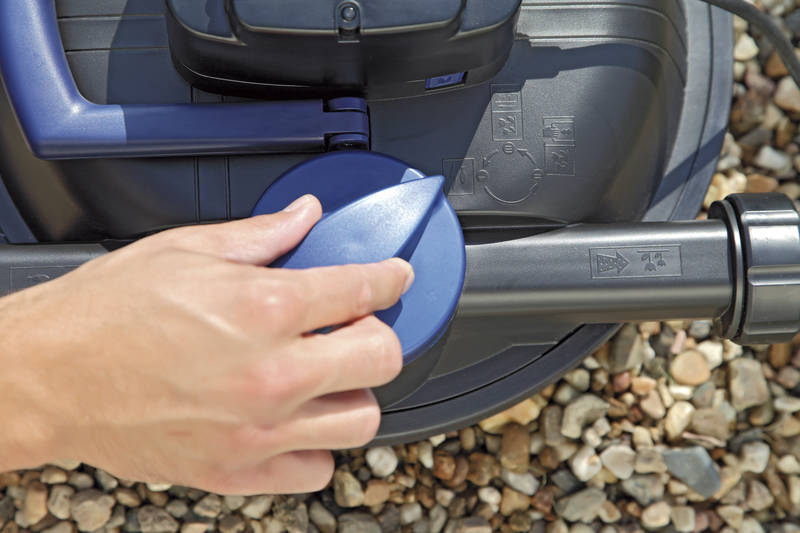

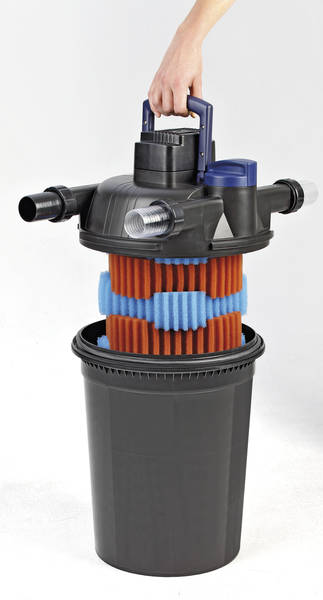

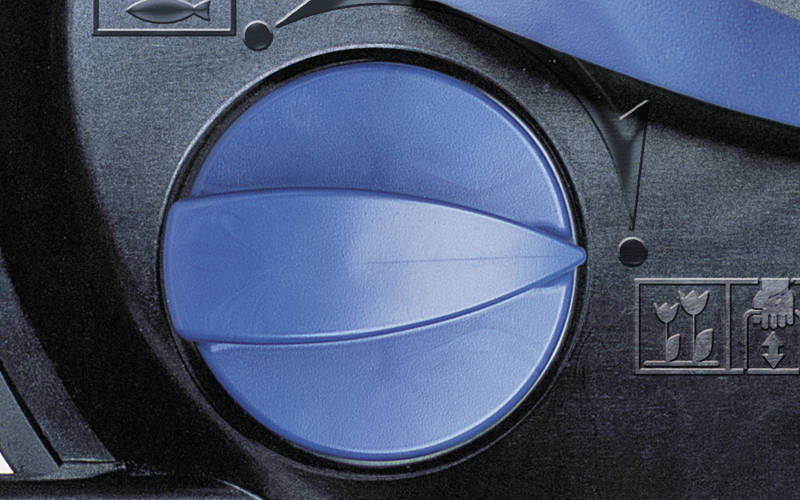

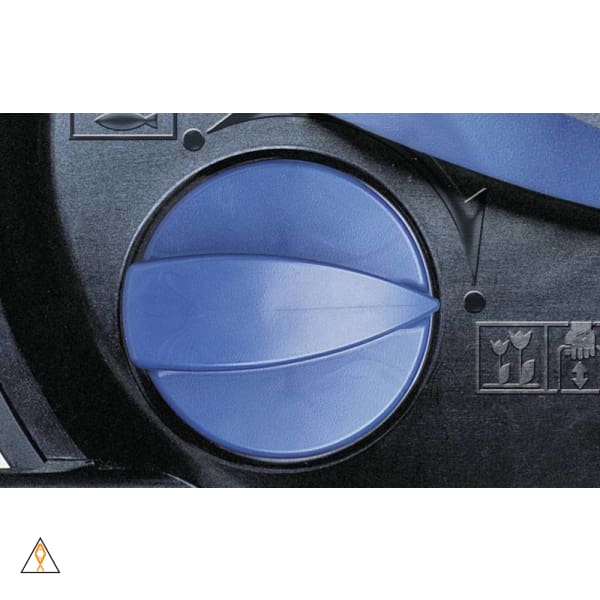

With Easy-Clean Technology, a 2-way valve system allows you to backflush the filter and redirect waste without opening the unit. Internal filter foams in three densities provide comprehensive filtration, while a UVC indicator window and pollutant level monitor offer at-a-glance diagnostics and lamp life tracking — all without disassembly.

Key Features:

• All-in-one filtration: Combines mechanical, biological, and UVC filtration in a compact, pressurized unit

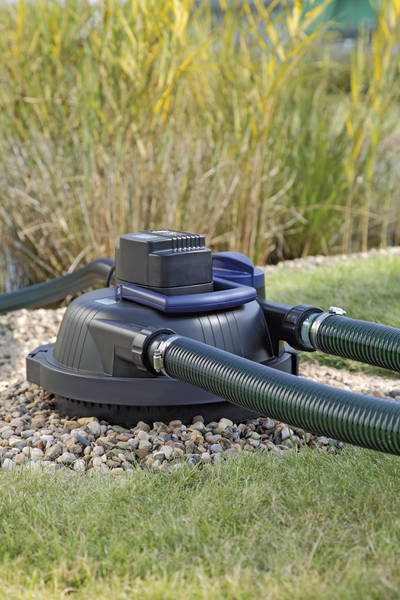

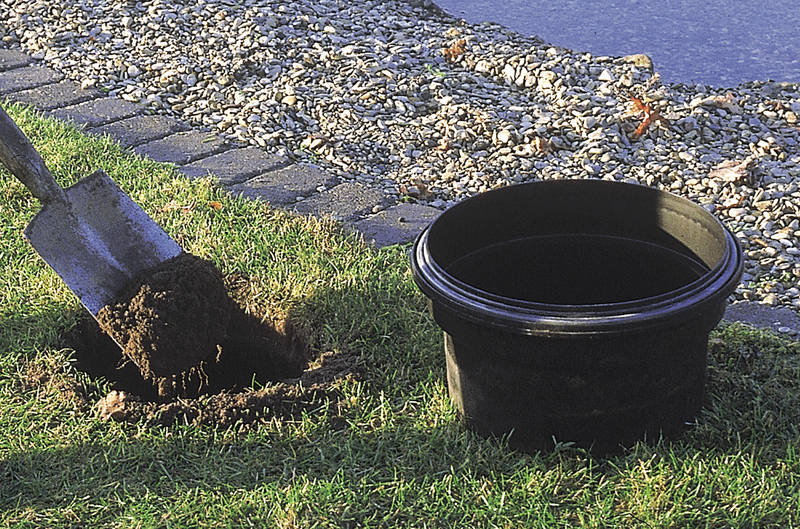

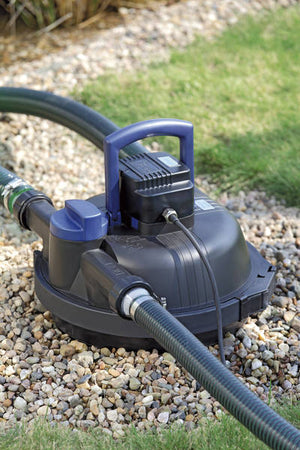

• Buryable design: Rugged housing allows in-ground installation up to the clamping ring

• Tool-free cleaning: Backflush system simplifies maintenance — no disassembly required

• UV filtration monitoring: Check UVC performance and pollutant levels through integrated indicators

• Bypass technology: Ensures steady water flow even under debris-heavy conditions

• Versatile installation: Includes metric step fittings and Sch40 adapters for 1.5" or 2" hose

• Clear Water Guarantee when paired with an appropriately sized OASE pump

Model Options:

FiltoClear 3400 – Compact Power

• Item #: OA142 91669

• UVC Power: 24W

• Max Flow: 2,400 GPH

• Pond Volume: Up to 3,400 gallons

• Fish Load Capacity: Light – 3,400 gal | Medium – 1,700 gal | Heavy – 850 gal

• Dimensions: 15"L x 15"W x 19¼"H

• Wattage: 24W | Voltage: 120V

• Cord Length: 16 ft

• Warranty: 2-Year

• Includes: UVC lamp, 3 filter foam types, fittings for 1.5" & 2" hoses

FiltoClear 5200 – Mid-Size Mastery

• Item #: OA143 91670

• UVC Power: 42W

• Max Flow: 3,450 GPH

• Pond Volume: Up to 5,200 gallons

• Fish Load Capacity: Light – 5,200 gal | Medium – 2,600 gal | Heavy – 1,300 gal

• Dimensions: 15"L x 15"W x 24"H

• Wattage: 42W | Voltage: 120V

• Cord Length: 16 ft

• Warranty: 2-Year

• Includes: UVC lamp, 3 filter foam types, metric step fittings, 1.5" & 2" Sch40 adapters

FiltoClear 8200 – High-Capacity Filtration

• Item #: OA144 91671

• UVC Power: 60W

• Max Flow: 4,500 GPH

• Pond Volume: Up to 8,200 gallons

• Fish Load Capacity: Light – 8,200 gal | Medium – 4,100 gal | Heavy – 2,050 gal

• Dimensions: 15"L x 15"W x 28¾"H

• Wattage: 60W | Voltage: 120V

• Cord Length: 16 ft

• Warranty: 2-Year

• Includes: UVC lamp, 3 filter foam types, 1.5" & 2" fittings (metric + Sch40)

Additional Benefits:

• Long Service Life: Rugged components and easy maintenance extend the filter’s life

• Eco-friendly Operation: Low energy draw with high filtration efficiency

• Wide Compatibility: Works with various pond pumps and plumbing sizes

• Maintenance Accessories: Replacement UVC lamps and foam filter sets available

Watch the FiltoClear in Action:

• Intro to OASE FiltoClear Series

• How to Maintain Your FiltoClear

• Easy Clean Demonstration

Note: All FiltoClear models are cULus Listed and designed for safe, long-lasting outdoor use.
