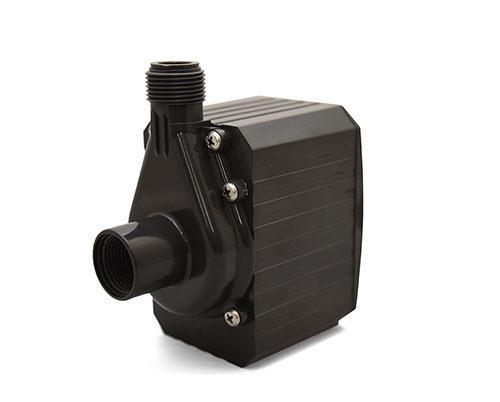

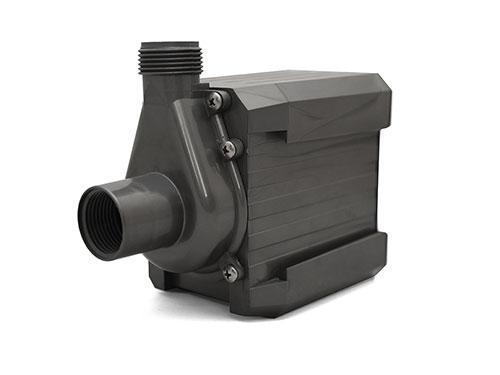

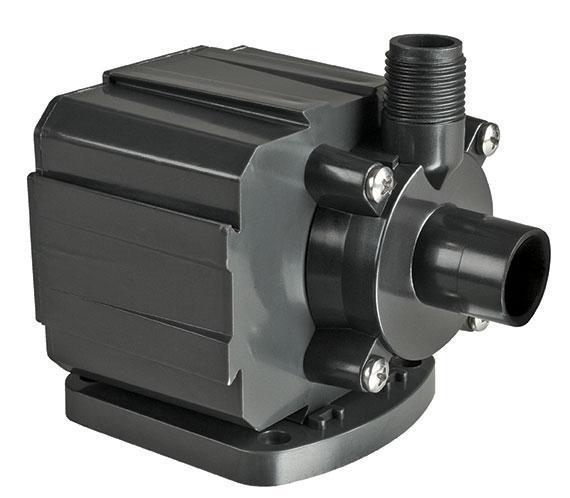

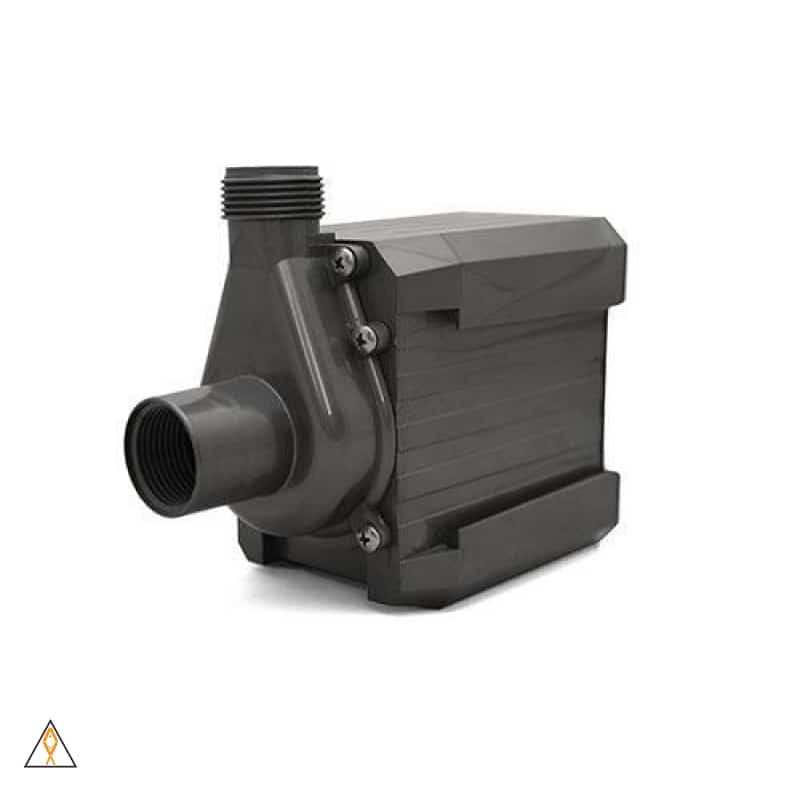

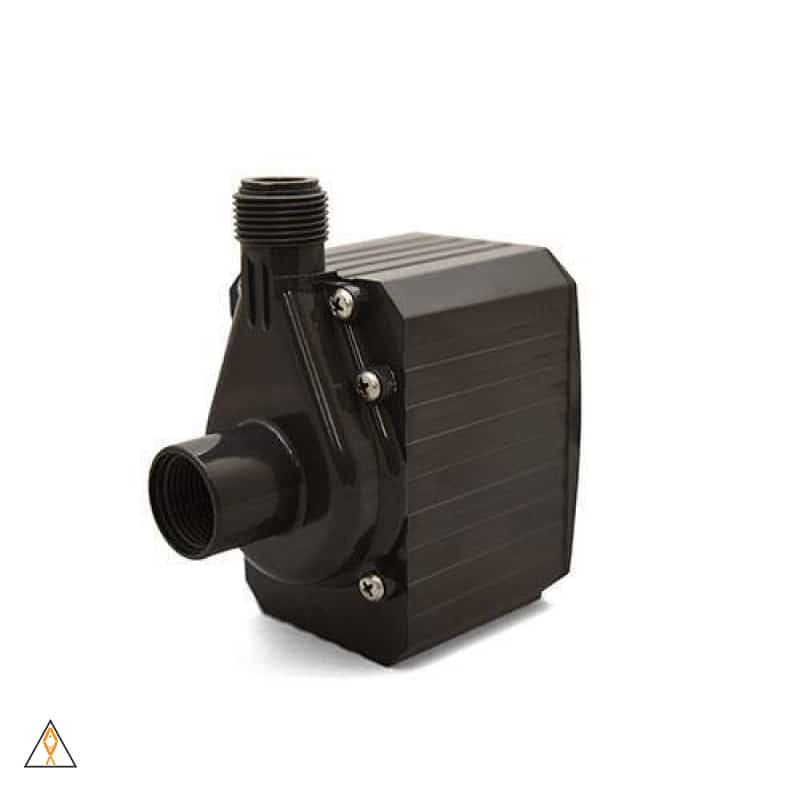

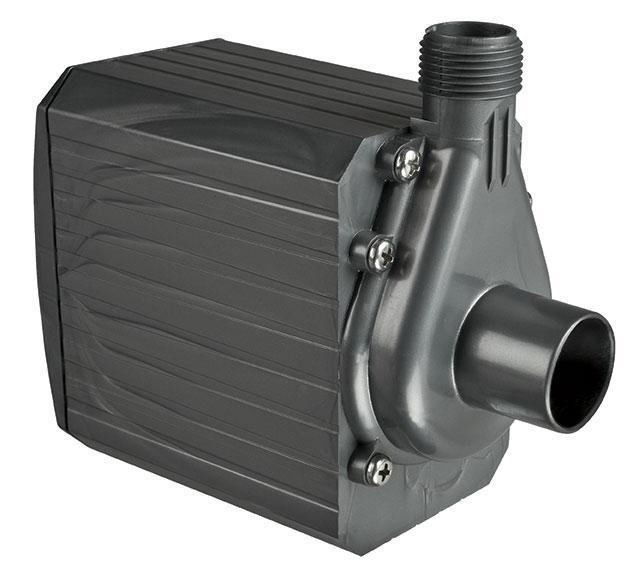

Supreme Aqua-Mag Magnetic Drive Water Pump - Danner

Size

Efficient Magnetic Drive Technology

Supreme Aqua-Mag 2 to 36 Series Pumps have been designed to handle virtually any application where water has to be moved. They have been fulfilling the needs of professionals and hobbyists for over 20 years with efficient, quiet and reliable 24/7 performance. Aqua-Mags are ideal in either saltwater or freshwater environments and operate equally well in-line or submerged. With only one moving part, a magnetically driven impeller and an epoxy-encased power unit, there’s never a fear that they will contaminate the water with harmful oils or chemicals.

  • FREE Reusable Debris Pre-Filter
  • Operates Submerged or In-Line
  • 10’ Grounded Power Cord
  • Energy Efficient Magnetic Drive Technology
  • Models 1.9 - ⅜” MPT Inlet, ¼” MPT Outlet
  • Models 2, 3, 5 and 7 - 1/2” FPT Inlet, MPT Outlet
  • Models 9.5, 12 and 18 - 3/4” FPT Inlet, MPT Outlet
  • Model 24 and 36 - 1” FPT Inlet, MPT Outlet
  • 5 Year Limited Warranty
 Pump Model Max. Watts/ Amps Inlet FPT Outlet MPT Cord Length

Dimensions

(L x W x H)

Model 2 24/ 0.4 1/2" 1/2" 10' 5.0" x 3.8" x 4.2"
Model 3 35/ 0.6 1/2" 1/2" 10' 5.0" x 3.8" x 4.2"
Model 5 45/ 0.9 1/2" 1/2" 10' 5.0" x 3.8" x 4.2"
Model 7 70/ 1.6 1/2" 1/2" 10' 5.0" x 3.8" x 4.2"
Model 9.5  93/ 1.33 3/4" 3/4" 10' 5.5" x 3.4" x 5"
Model 1200 110/ 1.5 3/4" 3/4" 10' 6.4" x 4.5" x 4.6"
Model 1800 145/ 1.55 3/4" 3/4" 10' 6.4" x 4.5" x 4.6"
Model 2400 237/ 2.2 1" 1" 10' 7.5" x 4.0" x 4.6"
Model 3600 256/ 3.0 1" 1" 10'

7.5" x 4.0" x 4.6"



Pump Watts Flow @ 1' Flow @ 2' Flow @ 3' Flow @ 4'

Flow@ 5'

Flow @ 6' Flow @ 7' Flow @ 8' Flow @ 9' Flow @ 10' Flow @ 15' Shut off (ft)
Model 2 24 280 230 170 65 25             6' 5"
Model 3 35 420 375 325 280 235 190 140 90 30     10' 4"
Model 5 45 525 450 400 350 300 235 200 150 95     10' 6"
Model 7 70 655 605 565 530 450 420 325 275 200 110   11' 8"
Model 9.5 93 1010 930 900 840 770 710 650 600 530 475   13' 7"
Model 12 110 1190 1130 1065 940 900 840 795 730 630 570   13' 7"
Model 18 145 1300 1240 1170 1130 1040 1015 925 880 810 775 470 16' 6"
Model 24 237 2400 2350 2190 2030 1860 1730 1645 1510 1395 1380 830 17' 1"
Model 36 256 3060 2885 2775 2670 2595 2480 2365 2295 2205 2170 1615 22' 6"

×
